One step closer - Base Assembled

Here is a couple pictures of one of the more beautiful things I have made. Alright alright. I didn't really make that. I assembled it. A lot of work went into it to get it from the raw t-slot to its current state. Its incredible how many times you have to take that thing apart in order to fit everything and then you realize that something else needed to go on there so you have to take it all apart again

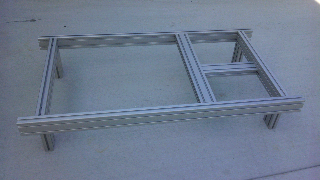

Extruded Aluminum CNC frame

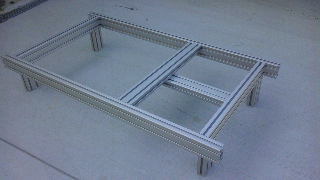

Extruded Aluminum CNC frame
Next task is to drill the hole in the x-axis rails. That's going to be a long hard task to do in a steel rail.
